Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW

Name: Environmental Constant Temperature And Humidity Test Chamber 55KW 18KW
Brand: Jianqiao
Price: 1 USD

Quality Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW for sale

Brand Name : Jianqiao

Model Number : JQTH-100L

Certification : CE

Place of Origin : China

MOQ : 1

Price : 1

Payment Terms : ,T/T

Packaging Details : Wooden case

Power Supply : AC 220V or AC380V 50Hz 3 PHASE with ground wire

Working conditions : RT to 35℃

Control method : PWM control

Temp uniformity : ±2℃(No-load)

Temp fluctuation : ±0.5℃(No-load)

Temp range : Model S:-70°C~+150°C , Model L: -40°C~+150°C or customized.

Contact Now

Constant Temperature and Humidity Test Chamber

Climate chambers, also known as environmental chambers or climatic chambers, are designed to test the effects of various environmental conditions on industrial, biological, electronic, pharmaceutical, and other products.

Available Models & Dimensions

Model	JQTH-100	JQTH-150	JQTH-225	JQTH-408	JQTH-800	JQTH-1000	JQTH-1200	JQTH-1500
Volume (L)	100L	150L	225L	408L	800L	1000L	1200L	1500L
Inner Dimensions (cm)
Width	50	50	70	70	100	100	150	150
Depth	40	50	46	75	80	100	80	100
Height	50	60	70	80	100	100	100	100

Technical Specifications

Temperature Range: Model S: -70°C to +150°C, Model L: -40°C to +150°C (customizable)
Humidity Range: 10% to 98% RH
Temperature Fluctuation: ±0.5℃ (No-load)
Temperature Uniformity: ±2℃ (No-load)
Cooling Rate: +150°C to -70°C at 0.8°C~1℃/min (Non-Linear)
Heating Rate: -70°C to +150°C at 1°C~3℃/min (Non-Linear)

Construction Materials

Exterior: 1.5mm Electrolytic plate with Electrostatic painting
Interior: Matte Stainless steel plate SUS 304
Insulation: Rigid Polyurethane Foam and Glass Fiber Wool

Control System

TW DELTA PLC with 7" color touch screen
Multi-language support (Chinese, English, Russian)
Operation Modes: Setting Fix/Program
Control Method: PWM control
Interface Options: USB, WLAN, RS232/R485 (APP function optional)

Safety Features

No-Fuse Breaker
Over-pressure, Over-load, and Over-current protection for compressor
Over-Temperature protection
Over-voltage coolant protection
Fan overload protection
Dry heat protection and fault warning system
Short of water protection

Standard Accessories

Observation Window (1)
Cable Port (￠50mm*2)
Shelves (2)
Chamber lamp (1)
Power cable (2m)

Power Requirements

Power range: 5.5KW to 18KW depending on model
Power supply: AC 220V or AC380V 50Hz 3 PHASE with ground wire

Product Tags:

Environmental Constant Temperature and Humidity Test Chamber

Constant Temperature and Humidity Test Chamber 5.5KW

Temperature And Humidity Chamber 18KW

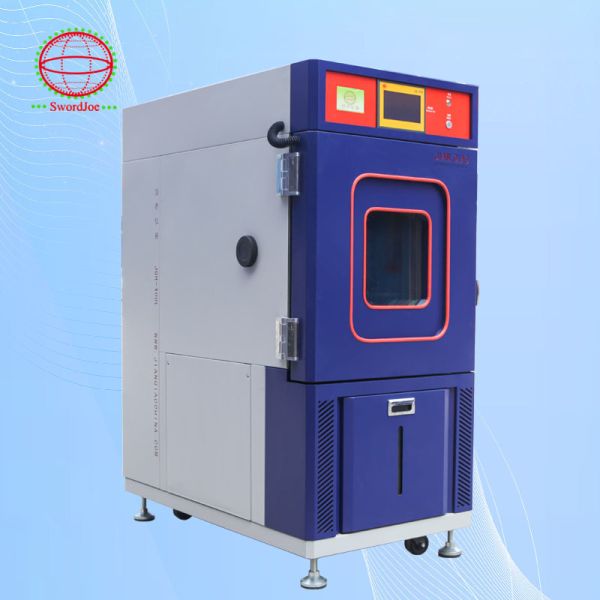

Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW Images
