Brand Name : Jianqiao
Model Number : JQESS-100
Certification : CE
Place of Origin : China
MOQ : 1
Payment Terms : ,T/T
Supply Ability : 300
Delivery Time : 5~ weeks
Heating System : Stainless Steel Tubular Heater
Cooling System : Mechanical Refrigeration
Warranty : 1 Year
Refrigeration Compressor : hermetic compressor(Tecumseh)
Humidity Uniformity : ±2.0%RH
Fan : Centrifugal blower
Humidifier : Steam humidifier
Humidity Control Range : 20.0%RH~95.0%RH
Evaporator : Fin - and - Tube Heat Exchanger
Chamber Size : 1000mm x 1000mm x 1000mm
Humidity Control : 10% ~95%RH
Packaging Details : Wooden case
The Environmental Stress Screen Test Chamber ( rapid temperature change test chamber ) is mainly used to test for the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. It has Chinese and English display color touch screen screen, which is easy to operate and easy to edit. It can display complete system operation status related data, execute and set abnormality in program curve operation, and the screen will automatically display the cause of the fault and provide it immediately. Troubleshoot the method.
It is suitable for the reaction of various electronic components, hardware appliances, plastic materials, automotive, medical, chemical, communication and other industries in the heat and cold resistance and other temperature and humidity test environments. It is suitable for temperature and humidity environment testing of product development, design, production and inspection in various industries.
Model |
JQESS-100 |
JQESS-150 |
JQESS-225 |
JQESS-408 |
JQESS-800 |
JQESS-1000 |
JQESS-1200 |
JQESS-1500 |
Inner size (cm) |
50*40*50 |
50*50*60 |
60*50*75 |
80*60*85 |
100*80*100 |
100*100*100 |
120*100*100 |
150*100*100 |
Outer size (cm) |
70*100*156 |
70*125*147 |
80*129*168 |
80*140*180 |
120*155*195 |
120*175*195 |
140*175*195 |
170*175*195 |
Volume (L) |
100L |
150L |
225L |
408L |
800L |
1000L |
1200L |
1500L |
Power(KW) |
20 |
25 |
32 |
36 |
40 |
40 |
48 |
52 |
Exterior material |
Baked Electrolytic plate with Electrostatic painting |
|||||||
Interior material |
Stainless steel (SUS304) |
|||||||
Insulation material |
Rigid Polyurethane Foam |
|||||||
Control method |
PWM cold end control technology |
|||||||
Temp Range |
Model S type :-70°C~+150°C , Model L type : -40°C~150°C or customized. |
|||||||
Humidity range |
20 % to 98% RH |
|||||||
Linear Temp. |
-40℃~±85℃ |
|||||||
Temperature |
5℃/min 10℃/min 15℃/min 20℃/min 25℃/min or customize |
|||||||
Refrigerator |
Cascade refrigeration system |
|||||||
CoolingModel |
Air cooled / Water cooled |
|||||||
Temperature sensor |
PT-100 Platinum Resistance |
|||||||
Controller |
TW DELTA PLC touch screen control,language ,Chinese , English , Russian |
|||||||
Safety devce |
Over -pressure,Over-load and Over-current protector for compressor , |
|||||||
Configuration interface |
With USB , WLAN, RS232 port , APP function is optional |
|||||||
Power supply |
AC 220V or AC 110V or AC380V 50Hz |
![]() |

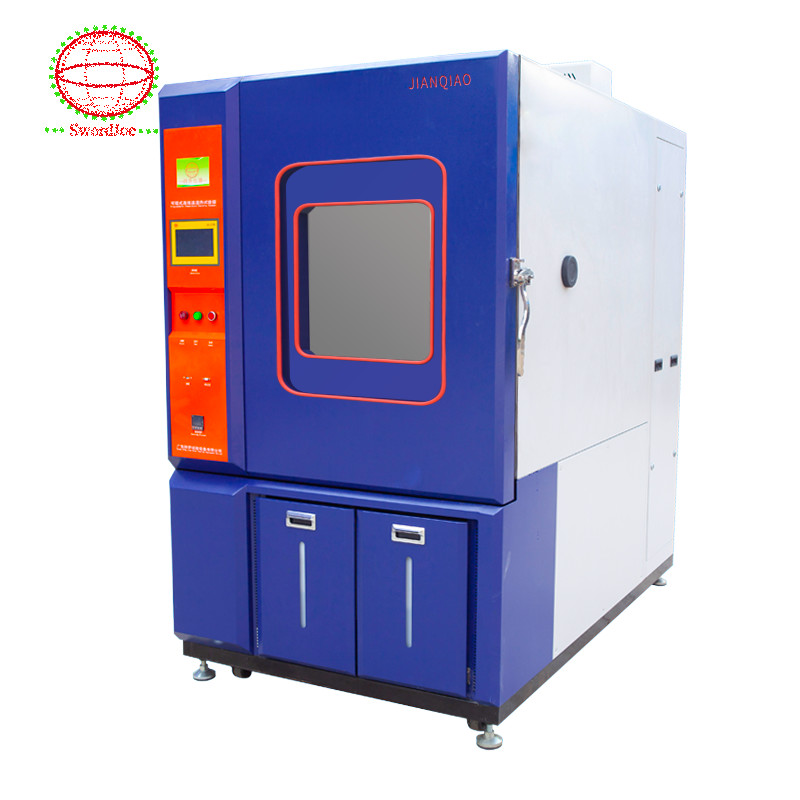

Environmental Stress Screen Test Chamber 20KW Rapid Temperature Change Test Chamber Images |
